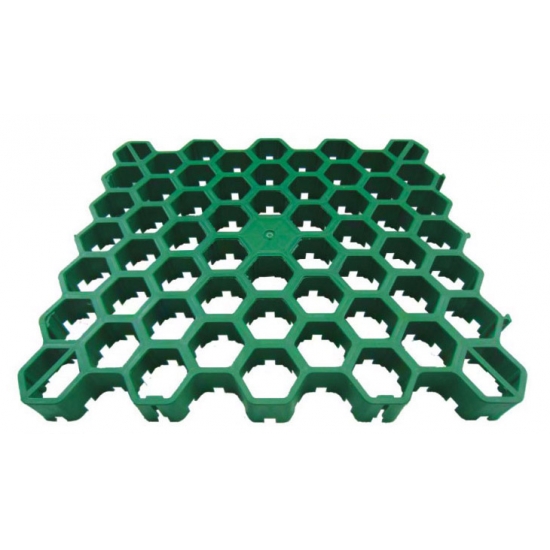

Interlocking Grass Lawn Protection Grid

  • MZ-438A3
  • 465x535x38mm
  • HDPE
  • Green
  • 120ton/sqm
  • -40℃ to 90℃
  • Muddy parking solution;Muddy parking solution;Grass verges
  • 3.4kg/sqm
  • Bundle or carton
  • 8pcs/bundle, 2300sqm/40'HC
  • 39259000

  • Contact Now
Product Details

Interlocking Grass Lawn Protection Grid Specification:

 Item Code  MZ-438A3
 Certificate  CE Certificate, ISO Certificate
 Material  HDPE
 Size(L x W x H)  465x535x38mm
 Color  Green
 Working Temperature  Dimensionally stable for -40℃ to 90
 Afforests Rate  95%~100%
 Porosity  90%
 Moisture Absorption  0.1%
 Environmental Compatibility  No toxic, harmless to plants, animals, microorganisms, inert material, groundwater neutral
 Anti HCL  According to GB4218-1984, 30%x24h, no visible change
 Anti NaOH  According to GB4218-1984, 40%x24h, no visible change
 Thermal Aging  According to GB/T 7141-1999, 70ICx24h, no visible change
 Anti UV  According to GB/T18830, UPE>30 T(UVA)AV<5%, qualified
 Packing  Bundle or Carton (or at your request), 8pcs=2sqm=1bundle
 MOQ  100sqm
 Loading Capacity 940sqm=1x20ft container; 1910sqm=1x40ft container; 2300sqm=1x40HC container

 About 20 days after receipt the deposit.

 FOB Xiamen, appointed shipping-terms and port accept.

 Installation Guide



Feature and Benefits:

  • Manufactured from 100% recycled plastics, eco-friendly grass grids
  • Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
  • Perfect greening, provides more than 95% grass area
  • High compressive strength and durable, the plastic grass grids is permanent and long lasting
  • Fast and easy to install, maintenance with low cost
  • Permeability drainage performance, high water culvert

  • Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure
  • Grass grids has an open cell structure allowing unrestricted healthy grass root growth

  • Allows grass grid to grow with easy and binds firmly


Manufactured from 100% recycled HDPE material, Leiyuan Lawn Protection Grids are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.

Grass grids provides the pavement strength with the natural beauty of grass, at the same time, it eliminates soil compaction, reduces reflective heat and allowing for all weather accessibility at a very cost effective price.


Plastic Grass Grid Construction:

Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
