Mud Management Plastic Grass Paver Stabilizer Grid for Equestrian
- LY950
- 333*333*50mm
- HDPE
- Black Dark Green
- More than 250tons/m2 after filled
- -40 to 120 degree Celsius
- Paddocks, Horse walkers, Lunging arena, Equestrian sports area etc.
- 0.65kg/pc; 5.85kg/m2
- Bundles for FCL and cartons for LCL
- 570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC
- Contact Now
Recruit Global Distributors of Plastic Grass Paver Stabilizer Grid
Plastic grass paver stabilizer grids are a ground reinforcement paving grid system manufactured from recycled 100% HDPE plastic. Mud management stabilizer grid is inter-connect with each other to provide a very strong stable surface capable of withstanding heavy vehicle.

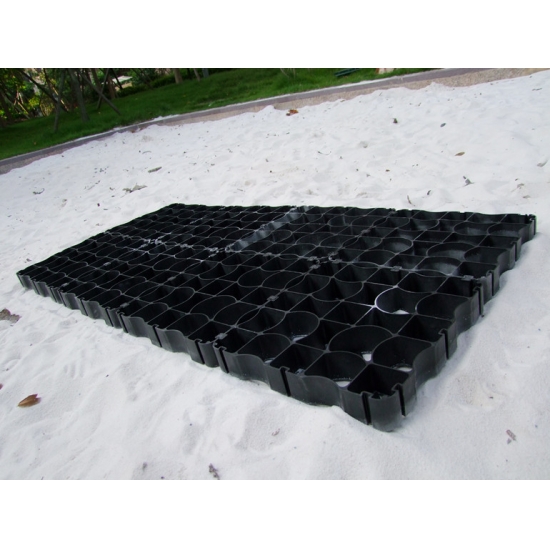

MUD MANAGEMENT PLASTIC GRASS PAVER STABILIZER GRID FOR EQUESTRIAN
LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT –STABILIZER GRID
Equestrian Stabilizer Grid is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Plastic Grass Paver Stabilizer Grid from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.
DIMENSION
| MATERIAL: | HDPE(100% Recycled High Density Polyethylene) |
| SIZE: | 336*336*50mm |
| COLOR: | Black; Dark Green |
| CELL WALL THICKNESS: | 2mm |
| WEIGHT: | 0.65kg/pc; 5.85kg/m² |
| PACKING: | Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go. |
| LOADING QUANTITY: | 570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ |
SPECIFICATION
LOADING BEARING CAPACITY:
More than 250tons/m2 after filled
OPEN CELL PERCENTAGE:
92% top; 75% base
ANTI HCL:
According to GB4218-1984, 30%x24h, no visible change
ANTI NaOH:
According to GB4218-1984, 30%x24h, no visible change
THERMAL AGING:
According to GB/T 7141-1999, 70ICx24h, no visible change
UV RESISTANCE:
According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
TOXICITY:
Non Toxic
DURABILITY:
Durability of at least 10 years in neutral ground of 4<pH<9
COLORS
APPLICATION
- Indoor and outdoor riding arenas
- Paddocks and open stables
- Horse walkers
- Lunging arena
- Equestrian sports area
- Tethering and mounting areas
- Feeding spots
- Tolt tracks, Racetracts
- Gravel road
- Round pens
- Washing areas.
FEATURE
-Light weight
-Non-slip
-Elastic and robust
-Easy Install
-Crack-proof
-Weatherproof
-Environmentally friendly, 100% recyclable
-High load capacity
-Ammonia resistant
-Withstands frost and UV light
-Does not rot
