PP Floor Heating Hydronic System Module

  • WT4501
  • 450*450*25mm
  • Polypropylene
  • Black
  • 2000kg/m2
  • 40℃ to 100℃
  • Industrial, Commercial building heating/cooling systems, Agriculture, Animal husbandry, Forestry heating, Airports, schools, hospitals, Fishery
  • 2.5kg/sqm
  • 25pieces/carton
  • 360CTN=1x40'GP
  • 39259000

  • Contact Now
Product Details

PP Floor Heating Hydronic System Module

INTRODUCTIONFloor Heating Hydronic System Module is mainly used under 60 water pour into the heating pipe that implementation of internal recycling as heat medium, setting the Heating Hydronic Module under the floor to warm up the entire floor. It is a highly safety module to keep indoor warming; also it can provide and reuse hot water in our life. With high compression strength and lightweight module design of hydronic systems is makes installation easier, cheaper, safer than electric heating.

hydronic systems


SPECIFICATION

Item No.: WT4501

Color: Blackhydronic heating

Dimension: 450*450*25mm

Weight: 2.5kg/m2

Material: PP(Polypropylene)

Quantity of a Carton: 25 Pieces

Coil Pipe Distance: 15cm

Suitable Pipe Caliber: 16cm

Water Distributor Module: 400*400*25mm

Daily Capacity: 200sqm/Day

Toxicity: Nontoxic

Working life: More than 50 years



FEATURES:

1.   Safety and useful

2.   Recyclablehydronic heating

3.   Corrosion resisting

4.   Resist compression

5.   Flame retardance

6.   Provide hot water

7.   Made with Anti-pollution material

8.   Easy to install and have buckle can fix the pipe directly

9.   Do not release toxic gas over 100

10. Equal heating and keep the heat quantity lasting

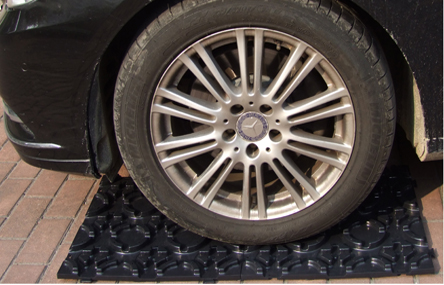

11. High pressure strength

12. Good dielectric property and insulativity, would not be affected by humidity

13. Easy for air circulating


ADVANTAGE


1. High pressure strength

2.Reduce labor cost, rapid and convenient constructionhydronic heating

3.Good ability of heat storage

4.Partly soundproof effect

5. Energy conservation

6.lightweight design, reduce the load of building

7.Heating rapidly: only need 10-20 minutes

8.Installation flexibly

9. Easy to install and high efficient

10.Working life more than 50 years


APPLICATION


1. Industry

2. Civil and Commercial building heating/refrigeration systems

3. Agriculture

4. Animal husbandry

5. Fishing Industry

6. Forestry

7. Airport

8. School

9. Hospital

10.Indoor


PROJECT


hydronic heating


HOW TO INSTALL?


Step1: Laying the reflectance coating or other insulation board

Step2: Laying the hydronic heating module upon the reflectance coating

Step3: Coiling pipe on hydronic heating module

Step4: Backfill concrete or paving ground decoration directly

hydronic heating
