PP Material Underground Water Storage Rainwater Harvesting Module

  • LY-M6841
  • 640*450*410mm
  • PP
  • Black or Blue
  • 25-40tons/sqm
  • -30℃ to +120 ℃
  • Road Drainage, Residential Area, Car Parking Lot, Golf Course etc
  • 8kg/module
  • 680*410mm 8pcs/bundle;450*410mm 10pcs/bundle
  • 90CBM/20'GP;189CBM/40'GP;216CBM/40'HQ
  • 3925900

  • Contact Now
Product Details



PP Material Underground Water Storage Rainwater Harvesting Module means the entire process of rainwater collecting. It is becoming increasingly obvious to most governments around the world that the cost of providing a usable water supply is increasing rapidly.Decaying infrastructure and storm water system pollution is not only contaminating ecosystems but this valuable source of water is literally going down the drain. A solution for this problem is Rainwater harvesting, it is the process of collecting, storing, and distributing rainwater.


Leiyuan Underground Water Storage Module designed with scientific structure and manufactured using recycled material. Plastic modular is ideal for the construction infiltration tanks, re-use tanks, sub surface channels and lightweight void spaces. We're able to produce higher press strength products according to customers' specification.


RAINWATER HARVESTING SYSTEM PROCESS DEMONSTRATION



PRODUCT SPECIFICATION:

Dimensions

Modular

(Units)

Width

(mm)

Width

(inches)

Length

(mm)

Length

(inches)

Height

(mm)

Height

(inches)

Single(1)

410

16.1

680

26.8

450

17.7

Double(2)

410

16.1

680

26.8

880

34.6

Triple(3)

410

16.1

680

26.8

1310

51.6

Quad(4)

410

16.1

680

26.8

1740

68.5

Pent(5)

410

16.1

680

26.8

2170

85.4












Details

Modular

(Units)

Tank

Vol.

(cf)

Storage

Vol.

(cf)

#Large Plates

#Small Plates

Weight

(lbs)

Single(1)

4.43

4.21

4

5

17.35

Double(2)

8.50

8.07

7

10

32.13

Triple(3)

12.89

12.25

10

15

46.91

Quad(4)

17.13

16.28

13

20

61.69

Pent(5)

21.36

20.29

16

25

76.47












Products Picture

Single (1)

Double (2)

Triple (3)

Quad (4)

Pent (5)










































































Specifications

Item

Description

Value

Unit

Void Area

Area available for water storage vs. that made up of plastic

95

%









Surface Area Void

Open area where water may percolate into or out of the unit

95

%

Rib Thickness

Thickness of load-bearing members

0.8(20)

Inch(mm)

Unit Weight

Weight of plastic per cubic foot of tank

3.60

Lbs/cf

Service Crush Strength

Operating temperatures where unit can be expected to perform adequately

-30 to 197

Degrees Fahrenheit

Unconfined Crush Strength

Using a full-size load plate that completely covers the top of the unit determines the pressure required to crush the entire unit

37.0

psi

Recycled Content

Percentage of product made from Recycled Polypropylene

80.0

%

90 Days Creep Testing

Used to determine the      Load Applied    Initiated & Sustained

long-term performance     Creep Sustained  After 90 Days

 of the system            Creep Sustained  After 90 Days

*Double Module Tested     Projected Creep  50 years

14.12

0.13

0.31

0.81

psi

Inches

%

%





















TECHINICAL TEST DATA(TRI TEST)

Leiyuan Tank module system can support vehicle loading up to AASHTO HS-20 rating of 32,000lbs loads with safety factors well above AASHTO requirement. Read on and we'll explain how to handles heavy loads, and why it will work under HS-20 loads for your project.


PRINCIPLE:

The first step is to collect the rainwater according to the requirements, and then processing the collected rainwater to achieve compliance with the design using of the standard rainwater harvesting system. At present the sytem is mostly consist of abandoned flow filtration system, storage system and purification system.


FUNCTION

The function of Leiyuan rainwater collection sytem has two aspects, one is the collection of rainwater and the other one is the reuse of the rainwater. There are five steps, that is collection, transporation, purification, storage and reuse. With these steps we can supply the water in landscape, underground water with the rain water, in this way we can make the full use of the water resource. The advantages of the measures are in many aspects including the reduction of the flood, the reduction pollution of rainwater on the ground, the improvement of the ecological environment. The authorities can design pavement, architecture, pool and street to collect rainwater and reuse it in the landscape.


APPLICATION

The rain water collection system is mainly used in the storage and reuses of rainwater, such as the drainage along the street, roof garden, parkland, water filtration system, residential area, city road drainage construction, sport field system, the landscape and so on.


ADVANTAGE

-Interconnecting Units                      -Light weight and high strength

-Cost effective and eco-friendly          -Resistant to acid and alkali

-High capacity and high stability          -Strong structural design

-Straightforward installation               -Increased Infiltration and Exfiltration

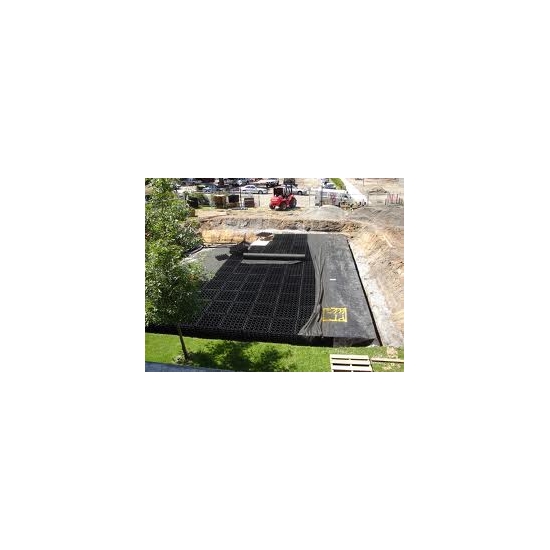

INSTALLATION GUID





CONSTRUCTION STEPS



PROJECT

-Urban Complex



Park and Municipal


Industrial Park/CBD



School/Hopspital


FACTORY



PRODUCTION



WAREHOUSE

PACKING & LOADING
