High Density Material Ground Reinforcement Plastic Mesh Flooring Mats Grids
- LY950
- 333*333*50mm
- HDPE
- Black Dark Green
- More than 250tons/m2 after filled
- -40 to 120 degree Celsius
- Paddocks, Horse walkers, Lunging arena, Equestrian sports area etc.
- 0.65kg/pc; 5.85kg/m2
- Bundles for FCL and cartons for LCL
- 570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC
- Contact Now
HIGH DENSITY MATERIAL GROUND REINFORCEMENT PLASTIC MESH FLOORING MATS GRIDS

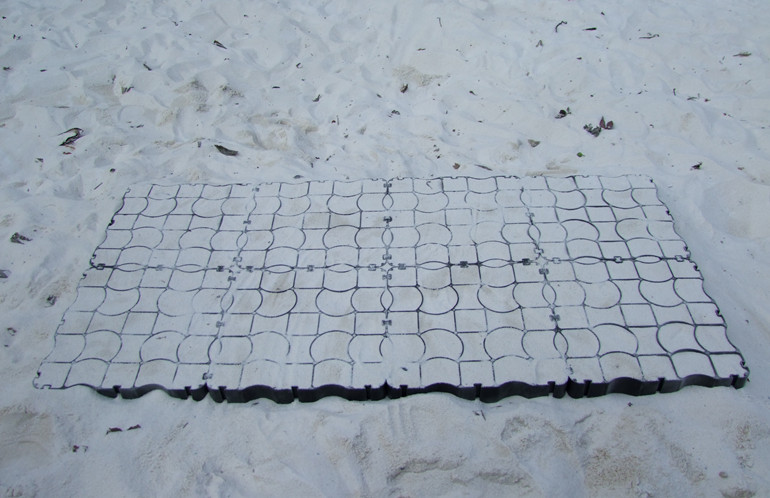

Plastic mesh flooring mats grids are specially developed and manufactured for the equestrian industry and provide a level and dry arena base in extreme wet conditions and heavy horse traffic areas. The mats grid is an interlocking system of grids made of heavy duty yet elastic Polyethylene.
LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT –MATS GRIDS
Ground Reinforcement Mats Grids is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Plastic Mesh Flooring Mats Grids from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.
DIMENSION
| MATERIAL: | HDPE(100% Recycled High Density Polyethylene) |
| SIZE: | 336*336*50mm |
| COLOR: | Black; Dark Green |
| CELL WALL THICKNESS: | 2mm |
| WEIGHT: | 0.65kg/pc; 5.85kg/m² |
| PACKING: | Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go. |
| LOADING QUANTITY: | 570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ |
SPECIFICATION
LOADING BEARING CAPACITY:
More than 250tons/m2 after filled
OPEN CELL PERCENTAGE:
92% top; 75% base
ANTI HCL:
According to GB4218-1984, 30%x24h, no visible change
ANTI NaOH:
According to GB4218-1984, 30%x24h, no visible change
THERMAL AGING:
According to GB/T 7141-1999, 70ICx24h, no visible change
UV RESISTANCE:
According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
TOXICITY:
Non Toxic
DURABILITY:
Durability of at least 10 years in neutral ground of 4<pH<9
COLORS
APPLICATION
- Indoor and outdoor riding arenas
- Paddocks and open stables
- Horse walkers
- Lunging arena
- Equestrian sports area
- Tethering and mounting areas
- Feeding spots
- Tolt tracks, Racetracts
- Gravel road
- Round pens
- Washing areas.
FEATURE
-Light weight
-Non-slip
-Elastic and robust
-Easy Install
-Crack-proof
-Weatherproof
-Environmentally friendly, 100% recyclable
-High load capacity
-Ammonia resistant
-Withstands frost and UV light
-Does not rot
