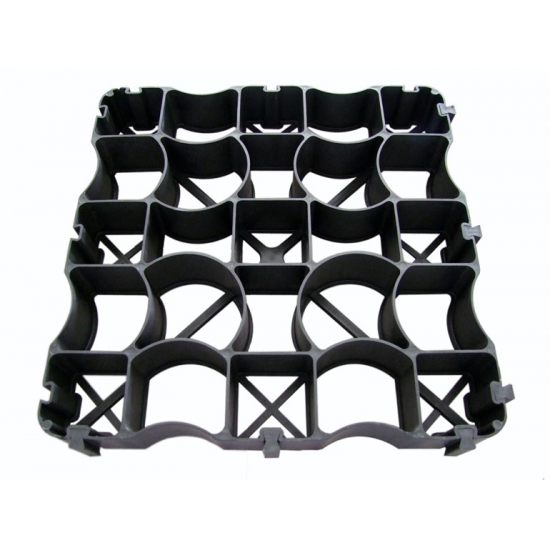

Open Outdoor Gravel Grid Soil Stabilizers Horse Flooring

  • LY950
  • 333*333*50mm
  • HDPE
  • Black Dark Green
  • More than 250tons/m2 after filled
  • -40 to 120 degree Celsius
  • Paddocks, Horse walkers, Lunging arena, Equestrian sports area etc.
  • 0.65kg/pc; 5.85kg/m2
  • Bundles for FCL and cartons for LCL
  • 570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC

  • Contact Now
Product Details

OPEN OUTDOOR GRAVEL GRID SOIL STABILIZERS HORSE FLOORING

Horse Racing Grid

Mud is a problem that all equestrian facilities and livestock owners must contend with. But don't worry, Leiyuan has designed a special gravel grids soil stabilizer horse flooring which can solve your mud problems forever by improving water drainage and preventing soil compaction.

Paddock Grids



THE ULTIMATE IN PADDOCK AND EQUESTRIAN SPORTS AREA

Gravel Grid Horse Flooring

LY950 TECHNICAL DATA

Horse Racing Grid

Recommended Apply Place: Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.
Loading Bearing capacity: More than 250tons/m2 after filled

Material: HDPE (100% Recycled High Density Polyethylene)

Color: Black; Dark Green

Cell Wall Thickness: 2mm

Weight: 0.65kg/pc; 5.85kg/m²

Size: 336*336*50mm

Open Cell Percentage: 92% top; 75% base

Anti HCL: According to GB4218-1984, 30%x24h, no visible change

Anti NaOH: According to GB4218-1984, 30%x24h, no visible change

Thermal Aging: According to GB/T 7141-1999, 70ICx24h, no visible change

UV resistance: According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified

Toxicity: Non Toxic

Durability: durability of at least 10 years in neutral ground of 4<pH<9

Packing: Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.

Loading Quantity: 570m2/20'GP; 1150m2/40'GP; 1310m2/40'HC


ACCESSORIES FOR GRAVEL GRID HORSE FLOORING

Horse Racing Grid

 We creat a unique & firm connected accessories and fix edging system that offers a guide to ensure continuous levels across surfaces as well as the ability to cut patterns and curves to surfaces.

Paddock Grids Accessories



FEATURE

Horse Racing Grid

Paddock Grids

Light weight

Non-slip

Elastic and robust

Easy Install

Crack-proof

Weatherproof

Environmentally friendly, 100% recyclable

High load capacity

Ammonia resistant

Withstands frost and UV light

Does not rot



ADVANTAGES
Greengrassgrid

No mud

Equal load on all joints

The tread layer remains separate from the substructure

Minimal maintenance

Stable Paddock Grids

High degree of elasticity

Load capacity of up to 250tons/m2

Outstanding drainage

More than 200 elastic elements per m2

Quick and easy to install

Environmentally friendly

Minimal hoof impact marks

Patented safety locking system

Permanent drainage

Robust surface with good grip

All-weather areas, the ideal surface all year round

Open stables keep free from mud and puddles.


PROJECT

Horse Racing Grid

Open Outdoor Horse Flooring
